WÖHR Combilift: Flexible parking systems for maximum space efficiency

The Combilift product range offers modular, semi-automatic parking solutions for residential, office and commercial buildings. Ideal for projects where space utilisation, cost-effectiveness and adaptability are key priorities.

Modular & scalable – adaptable to almost any building layout
More parking spaces in the same space – efficient infill development
Semi-automatic convenience – easy to use, quick access times
For new builds & existing buildings – flexible integration
Proven WÖHR quality – durable, low-maintenance, safe

GO TO THE PRODUCT OVERVIEW

REQUEST A CONSULTATION NOW

How does the Combilift work?

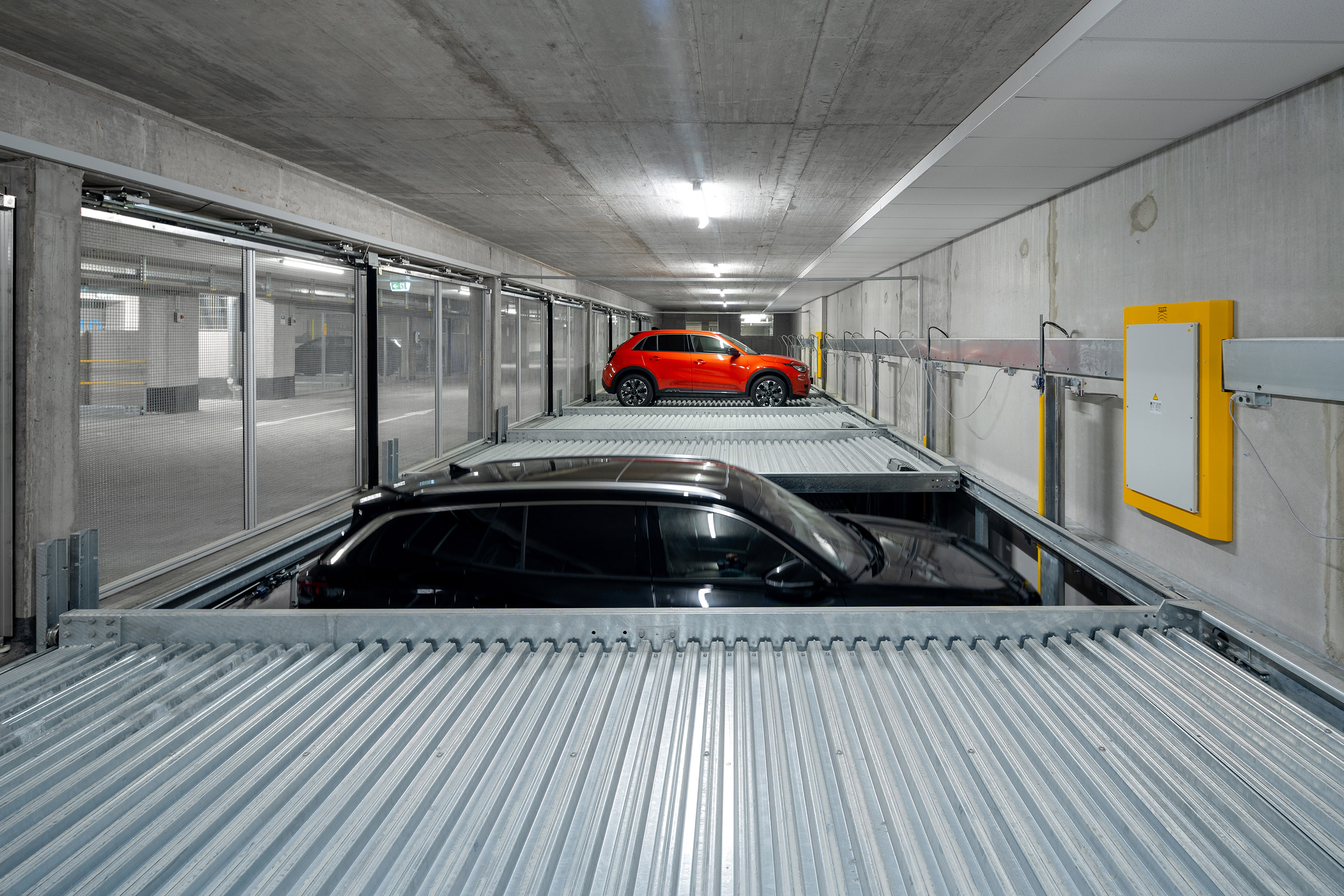

The Combilift is a semi-automatic parking system in which vehicles are parked on individual parking platforms and arranged on multiple levels to save space. Its unique feature lies in the intelligent movement of the platforms: they can move vertically via a lift system and horizontally within the parking structure.

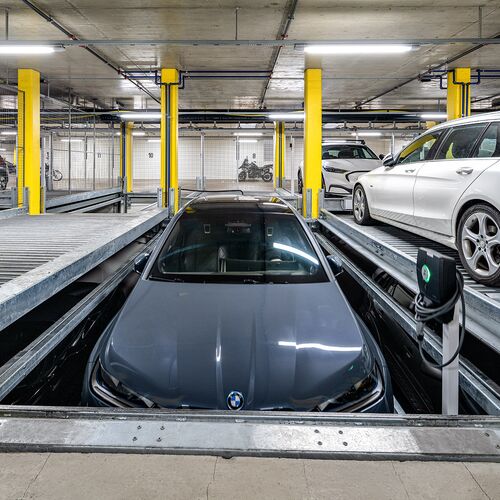

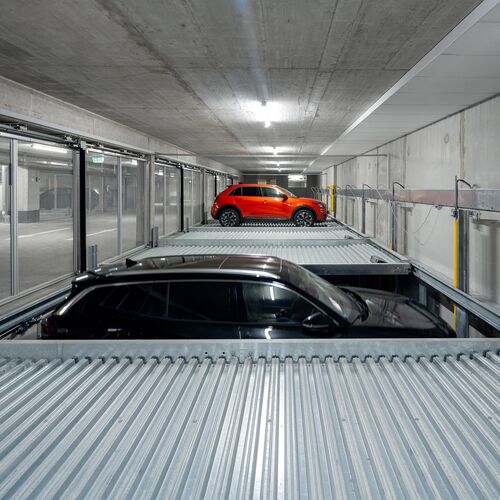

Once the vehicle has been parked on a transfer level, the system takes over the parking process. The platform is first raised or lowered vertically and then moved horizontally into the designated parking position. Free space within the system is utilised efficiently, ensuring that access to the desired vehicle can be provided at any time – without the need for traditional aisles, ramps or manoeuvring areas.
The Combilift can be arranged in several rows one behind the other (multi-row system). This allows the system to be individually adapted to the floor plan, building geometry and project requirements. Depending on the design, compact parking layouts with high parking density can be created, both above and below ground.

In short:

By combining vertical lifting with horizontal shifting of the parking platforms, the Combilift makes optimum use of the available space. The result is more parking spaces within the same area, reduced construction costs and maximum flexibility – ideal for urban construction projects and challenging infill developments.

Enable Youtube content

Yes, I would like to have content from Youtube displayed. I agree that by doing so, my personal data will be passed on to the operator of the portal from which the content originates, so that they can analyze my behavior. You can find more information in our privacy policy

Accept

The main benefits

Maximum space efficiency: By parking on movable platforms, there is no need for aisles, ramps or manoeuvring areas – resulting in significantly more parking spaces within the same floor area.
Vertical and horizontal movement of the parking platforms: The individual platforms are intelligently raised, lowered and moved sideways to allow vehicles to be moved in and out as required.
Individually configurable (multi-row systems): Combilift systems can be arranged in multiple rows, one behind the other or side by side, and adapt flexibly to the site, building layout and parking requirements.
Ideal for new builds and existing properties: Suitable for underground and above-ground applications, as well as for infill development and challenging inner-city sites.
Reduced construction and development costs: Less excavation, lower building height and the elimination of ramps lead to significant savings in construction and structural engineering costs.

Convenient parking: simply park your vehicle and the system takes care of the rest – no need to drive around looking for a space, no manoeuvring, and no getting in and out of the car in cramped garages.
Enhanced security: vehicles are inaccessible to unauthorised persons whilst parked, offering protection against theft, vandalism and damage.
Energy-efficient operation: Movements only occur when necessary; modern drive technology ensures economical and sustainable operation.
Future-proof and durable: Robust WÖHR quality, low-maintenance technology and decades of experience in automated parking.
Architectural freedom: More usable space for residential, green or commercial purposes – parking space is integrated invisibly and functionally.

Applications for WÖHR Combilifts

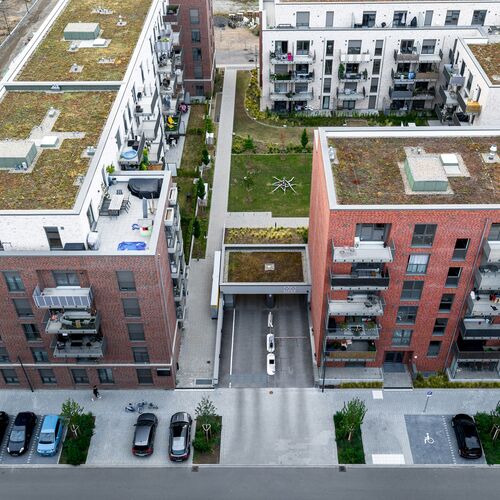

Residential construction (apartment blocks & neighbourhoods): Ideal for creating additional parking spaces where land is limited. The Combilift enables a high parking density whilst reducing the building footprint – perfect for urban housing projects and infill development.
New-build projects: Flexible system concepts allow for customisation to suit the architecture, parking requirements and building geometry – above ground, underground or a combination of both.
Existing buildings & refurbishments: The Combilift can be integrated into existing buildings, e.g. during conversions or modernisations, to create additional parking spaces without major structural alterations.
Office and administrative buildings: Convenient and secure parking solutions for staff and visitors – with optimised use of space and prestigious building design.

Hotels & Accommodation providers: Space-saving parking with high standards of comfort, particularly in city centre locations or for architecturally sophisticated hotel projects.
Mixed-use projects: Ideal for buildings with mixed-use functions (residential, commercial, retail).
Sites with specific constraints: Suitable where building height is restricted, access is difficult or building regulations are strict, as ramps and driveways are not required.

SAVING RESOURCES THROUGH STACKED PARKING

COMBILIFT 543 MR

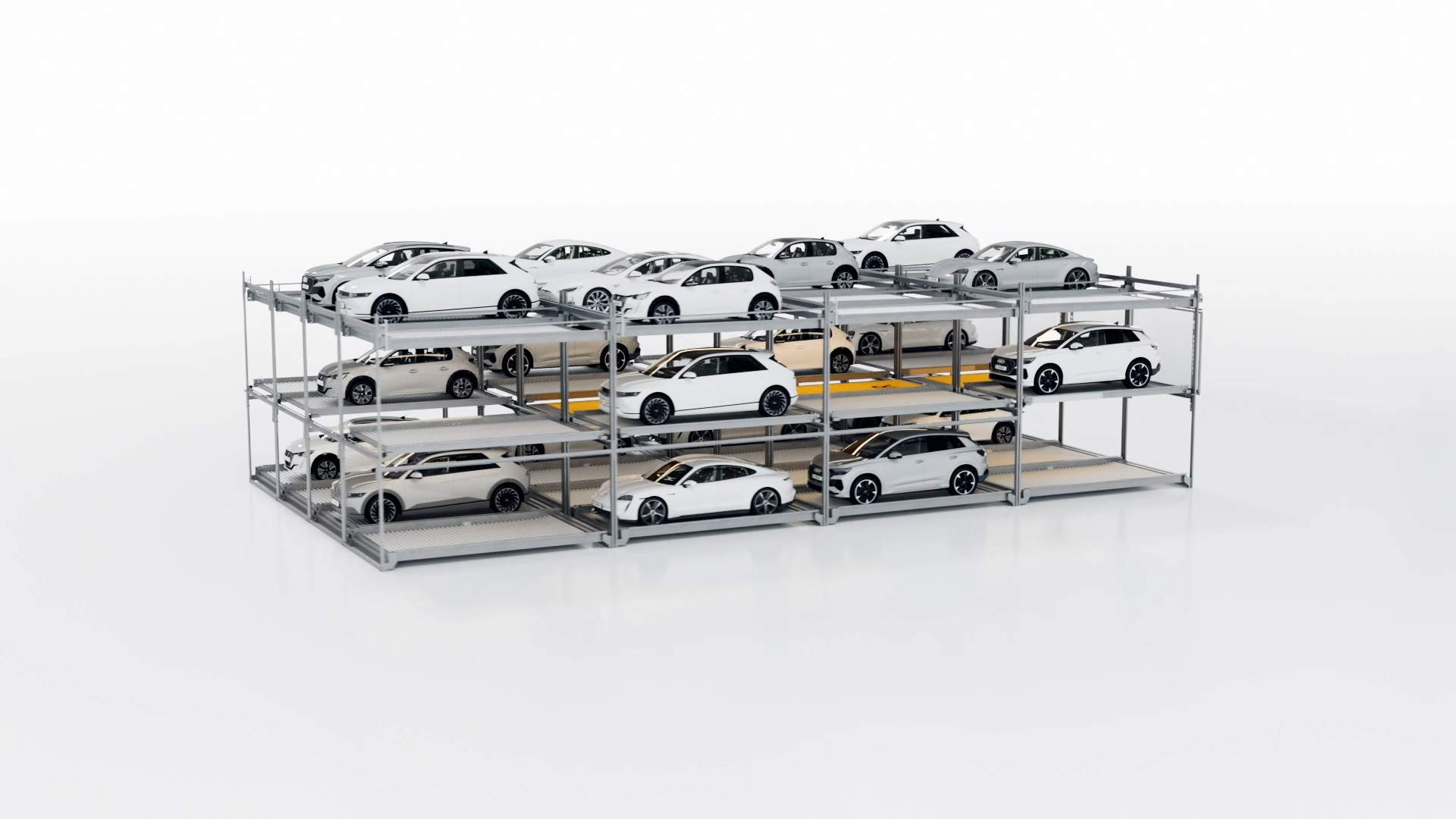

With the ‘Combilift 543MR’, the vehicles are stored in an extremely compact way by raising, lowering and moving the parking pallets sideways, and can still be parked independently on 3 levels.

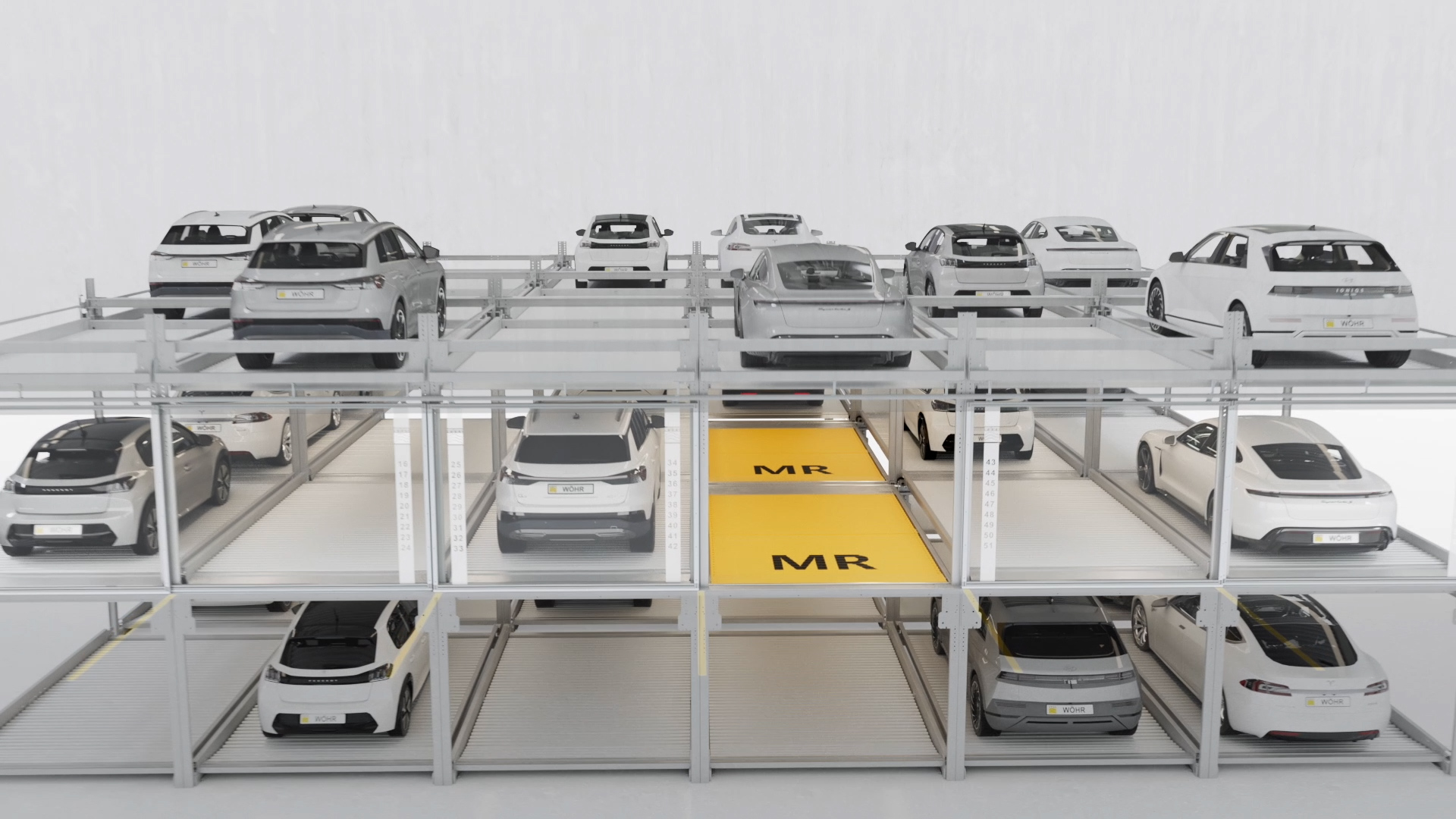

Thanks to the ‘Multi Row’ function of the MR version, the systems and therefore also the vehicles can be arranged in multiple rows. The flexible MR sliding platform acts as a bridge and enables access to the rear row of the parking system.

Surface area
Width 24,85 m x length 33,70 m at approx. 837 m²
Underground levels
3
Parking spaces Combilift
67
Parking spaces Conventional underground car park
60
Parking Space Parking system
Length 5,70 m, width 2,70 m, height 2,05 m
Parking space conventional
Length 5,20 m, width 2,65 m
